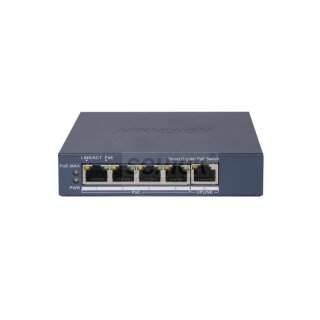

Hikvision DS-3E1505P-EI | 4 Port Gigabit Smart POE Switch

Artikelnummer: 4124
Kategorie: POE Switches
Hersteller: HIKVISION

4 × Gigabit PoE port,1 × Gigabit RJ45 port Total PoE Power Budget 60W Support 802.1Q VLAN Support PoE watchdog to detect and restart the cameras that do not respond Support STP/RSTP Loop prevention Support cable detection to locate failure Up to 300 m Long Range PoE Transmission 6KV Surge Protection

jetzt nur

99,20 €

inkl. 19% USt. , zzgl.

Alter Preis: 124,00 €

Kundengruppenrabatt: 20%

1 Auf Lager
Lieferzeit: 1 - 2 Tage* (DE - Ausland abweichend)

Beschreibung
Bewertungen

Allgemein
ShellMetal material
Nettogewicht0.26 kg (0.573 lb)
Bruttogewicht0.75 kg (1.65 lb)
Abmessungen (B × H × T)121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
Betriebstemperatur0 °C to 40 °C (32 °F to 104 °F)
Lagertemperatur-40 °C to 85 °C (-40 °F to 185 °F)
Luftfeuchtigkeit Im Betrieb5% to 95% (no condensation)
Relative Luftfeuchtigkeit5% to 95% (no condensation)
Spannungsversorgung54VDC, 1.2A
InstallationsmodusDesk-Mounted,Wall-Mounted
Max. Energieverbrauch65 W
Stromverbrauch Im Leerlauf0.9 W
Surge Protection6 KV

Netzwerk Parameter
Häfen4 × Gigabit PoE port,1 × Gigabit RJ45 port
MAC-Adresstabelle2 K
Schaltleistung10 Gbps
Paketweiterleitungsrate7.44 Mpps
Interner Cache1 Mbits

PoE-Netzteil
PoE-StandardIEEE 802.3af,IEEE 802.3at
PoE-Power PinEnd-span: 1/2(-), 3/6(+)
PoE-PortPoE: Ports 1 to 4
Max. Port Power30 W
PoE-Power Budget60 W

Softwarefunktion
Große Reichweite
Ports 1 to 4: up to 300 m.

Long range performance may vary depend on camera model or cable condition.
Port Isolation
Ports 1 to 4: port isolation mode to improve network security

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE-WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

Support static link aggregation.

Support 1 aggregation groups.
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

Suppport 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 32 VLAN.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Display the port rate.

2. Display the port bandwidth utilization rate.

3. Display the PoE power usage.

4. Display topology information.

5. Display the alarm status.

6. Restart ports and devices.

7. Enable port long-rage mode.

8. Remotely upgrade the device.
System Maintenance
Support device management via web.

Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

Support management via Hik-Central Pro.

Support remote management via Hik-Partner Pro.

Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

Supports 802.1ab LLDP for peer device discovery.

Support port mirroring for fault locating.

Genehmigung
EMVCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
SicherheitCE-LVD (EN 62368-1: 2014+A11: 2017),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
ChemieCE-RoHS (2011/65/EU),Reach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU)

Passende Kategorie: Videoüberwachung

Angaben zur Produktsicherheit

Herstellerinformationen:

Hangzhou Hikvision Digital Technology Co., Ltd,
No.555 Qianmo Road
Binjiang District, Hangzhou, China, 310052
support@hikvision.com
https://www.hikvision.com/de

verantwortliche Person:

Hikvision Deutschland GmbH
Wilhelm-Fay-Straße 32b
Frankfurt am Main, Deutschland, 65936
sales.dach@hikvision.com
https://www.hikvision.com/de/

Produkteigenschaft	Wert
PoE:	ja
Switch:	4 Ports POE
Netzwerkparameter:	10/100/1000 Mbit/s
Managed Switch:	ja
