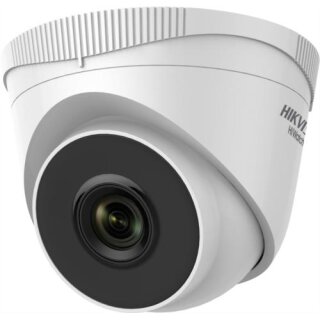

HWI-T240HA 4.0 MP IR Network Turret Camera HIKVSION

Artikelnummer: 3768
HAN: 3768
Kategorie: 4-5 Megapixels
Hersteller: HIKVISION

1/3" progressive scan CMOS
2560 × 1440@20fps
2.8 mm/4 mm fixed lens
H.265+, H.265, H.264+, H.264
Dual stream
120 dB WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
Up to 30 m IR range
PoE (Power over Ethernet)
IP 67

jetzt nur

156,00 €

inkl. 19% USt. , Versandkostenfreie Lieferung nach DE.

Alter Preis: 195,00 €

Kundengruppenrabatt: 20%

Sofort verfügbar
Lieferzeit: 3 - 4 Tage* (DE - Ausland abweichend)

Beschreibung
Bewertungen

Camera
Appearance	Turret
Image Sensor	1/3" progressive scan CMOS
Min. Illumination	Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed	1/3 s to 1/100, 000 s, support slow shutter
Slow Shutter	Yes
Auto-Iris	No
Day & Night	IR cut filter
Digital Noise Reduction	3D DNR
WDR	120 dB
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
Focal Length	2.8 mm, 4 mm
Aperture	F2.0
Focus	No
Angle of view	2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
Lens Mount	M12
IR
IR Range	Up to 30 m
Wavelength	850 nm
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
H.264 Type	Baseline Profile/Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Video Bit Rate	32 Kbps to 8 Mbps
Smart Feature-Set
Region of Interest	1 fixed region for main stream and sub-stream
Resolution	4MP
Main Stream Max. Frame Rate	50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream Max. Frame Rate	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement	BLC, 3D DNR
Image Setting	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch	Auto, scheduled
Network
Alarm Trigger	Motion detection, video tampering alarm, illegal login
Network Storage	NAS (NFS, SMB/CIFS)
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Client	iVMS-4200, Hik-Connect
Web Browser	IE8+, Chrome 31.0-44, Firefox 30.0-51
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions	-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption	12 VDC, 0.5 A, max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max: 6.5 W
Ingress Protection level	IP67
Material	Metal & Plastic
Dimensions	Camera: Ø 110 mm × 93.2 mm (Ø 4.3" × 3.7") With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight	Camera: approx. 350 g (0.77 lb.) With package: approx. 610 g (1.3 lb.)

Angaben zur Produktsicherheit

Herstellerinformationen:

Hangzhou Hikvision Digital Technology Co., Ltd,
No.555 Qianmo Road
Binjiang District, Hangzhou, China, 310052
support@hikvision.com
https://www.hikvision.com/de

verantwortliche Person:

Hikvision Deutschland GmbH
Wilhelm-Fay-Straße 32b
Frankfurt am Main, Deutschland, 65936
sales.dach@hikvision.com
https://www.hikvision.com/de/

Es gibt noch keine Bewertungen.
