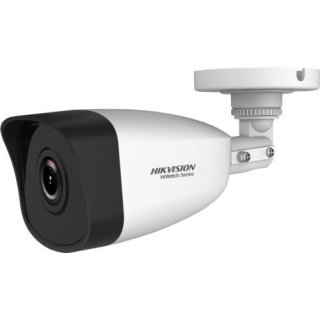

HWI-B141H Ip HIKVISION bullet Kamera mit 4 megapixel und fixes objektiv

Artikelnummer: 1851

Sensor: cmos ® Brennweite: 2.8 mm Nachtsicht: 30 m Verwendung: innen / außen PoE: poe 802.3af

Kategorie: 4-5 Megapixels


jetzt nur 129,93 €

inkl. 19% USt. , zzgl. Versand (Standard DHL)

Alter Preis: 152,85 €
Rabatt: 15%
sofort verfügbar

Lieferzeit: 1 - 3 Tage*



Camera
Appearance Bullet
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR DWDR
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
Focal Length 2.8/4 mm
Aperture F2.0
Focus Fixed
Angle of view 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard
Video Compression Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-Set
Basic Event Motion detection, video tampering alarm, exception (illegal login)
Linkage Method Upload to FTP, notify surveillance center, send email
Region of Interest 1 fixed region for main stream
Resolution 4MP
Main Stream Max. Frame Rate 50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream Max. Frame Rate 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC, HLC, 3D DNR
Image Setting Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night Switch Day/Night/Auto/Schedule
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function Anti-flicker, heartbeat, mirror, privacy mask
API ONVIF (PROFILE S), ISAPI, SDK
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users, 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Central, Hik-Connect
Web Browser IE8+, Chrome 31.0-44, Firefox30.0-51, Safari8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Reset Button Reset via web browser and client software
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.35 A, max. 4.2 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.2 W
Material Front cover: metal, back cover: plastic
Dimensions Camera: 67.2 × 71.4 × 186.4 mm (2.6" × 2.8" × 7.3")
With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")
Weight Camera: approx. 280 g (0.6 lb.)
With package: approx. 501 g (1.1 lb.)

HWI-B141H_Datasheet_V5.5.90_20190726.pdf

UD08902B-B_Baseline_Quick Start Guide of Network Bullet Camera_V5.5.5_B1X0_20180627.pdf

UD10686B_Baseline_HiWatch Multi-Lingual_Network_Camera_Quick_User_Guide__20180626.pdf






Artikelgewicht: 0,15 Kg
